Iso-Kit, integrated insulated cargo area for :

Volkswagen Crafter Van 2017

VOLKSWAGEN_CRAFTER VOLKSWAGEN_CRAFTER_ARR
Made in France
Food Food
Medical Medical
Specific Specific
20240122 TRIMAT KIT_fiche Isokit_VW CRAFTER FOURGON_en_us
Plan Carrossier (Volkswagen Crafter Van 2017 - Man TGE propulsion) GB
Plan Carrossier (Volkswagen Crafter Van 2017 - Man TGE Traction) GB

The various Iso-Kit fitting-out configurations

Reference Name
EKI0191 ISO-KIT insulation New CRAFTER 2017 L3H3 traction with right side door (MWB high)
EKI0192 ISO-KIT insulation New CRAFTER 2017 L3H3 traction without side door (MWB high)
EKI0193 ISO-KIT insulation New CRAFTER 2017 L4H3 traction with right side door (LWB high)
EKI0194 ISO-KIT insulation New CRAFTER 2017 L4H3 traction without side door (LWB high)
EKI0222 ISO-KIT insulation New CRAFTER 2017 L3H3 propulsion with right side door (MWB high)
EKI0223 ISO-KIT insulation New CRAFTER 2017 L3H3 propulsion without side door (MWB high)
EKI0224 ISO-KIT insulation New CRAFTER 2017 L4H3 propulsion with right side door (LWB high)
EKI0225 ISO-KIT insulation New CRAFTER 2017 L4H3 propulsion without side door (LWB high)

Keep the van’s original sheet metal partition: safe, soundproof, livable.
Vehicle with reinforced front axle option (VV8)

Dimensions

  L3H3 L4H3
Interior length 3,14 m 3,90 m
Interior width 1,55 m 1,55 m
Between wheel arches 1,21 m 1,21 m
Interior height
(Traction / Propulsion and 4MOTION)		 1,78 m /
1,68 m		 1,78 m/
​1,68 m
Volume 8,35 m3 10,70 m3
Schéma Volkswagen Crafter

Characteristics

IR: Enhanced Insulation with or without side door

  • Cemafroid Certification No. D62/004
  • Antibacterial food-grade gelcoat
  • Water drain with stainless-steel grating
  • Ceiling light (watertight as an option)
  • Aluminium door sills

Certifications

Cemafroid Cemafroid
certification
No. D14/001
UTAC TRIMAT is a
UTAC-certified
qualified operator
HACCP Our facilities comply
with the HACCP
hygiene method

Mounting and fairing for refrigeration unit

Reference Name
EKI0195 Mounting New CRAFTER 2017
GROUPE_FRIGORIFIQUE_blanc GROUPE_FRIGORIFIQUE_noir

Options and accessories

Customisation and multiple accessories as an option
(shelves, plinths, aluminium floor, mounting and fairing…)
Please ask us.

Provide the reinforced floor option for the use of a rolling cart (roller, pallet truck, etc.)

Other brand vehicles

VOLKSWAGEN_CADDY_ancien
Caddy et Maxi

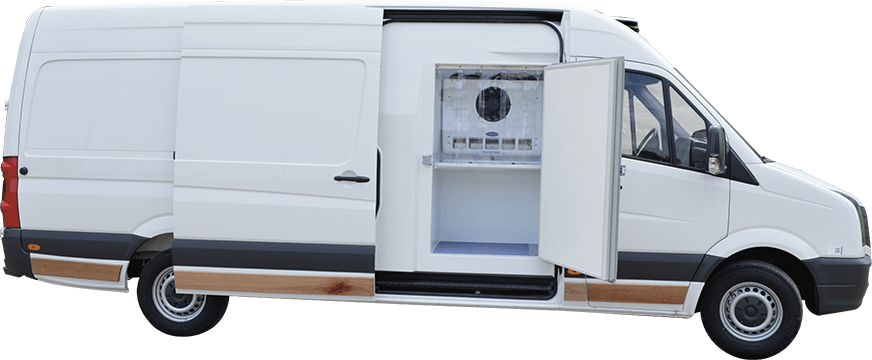

VOLKSWAGEN_CRAFTER_ancien
